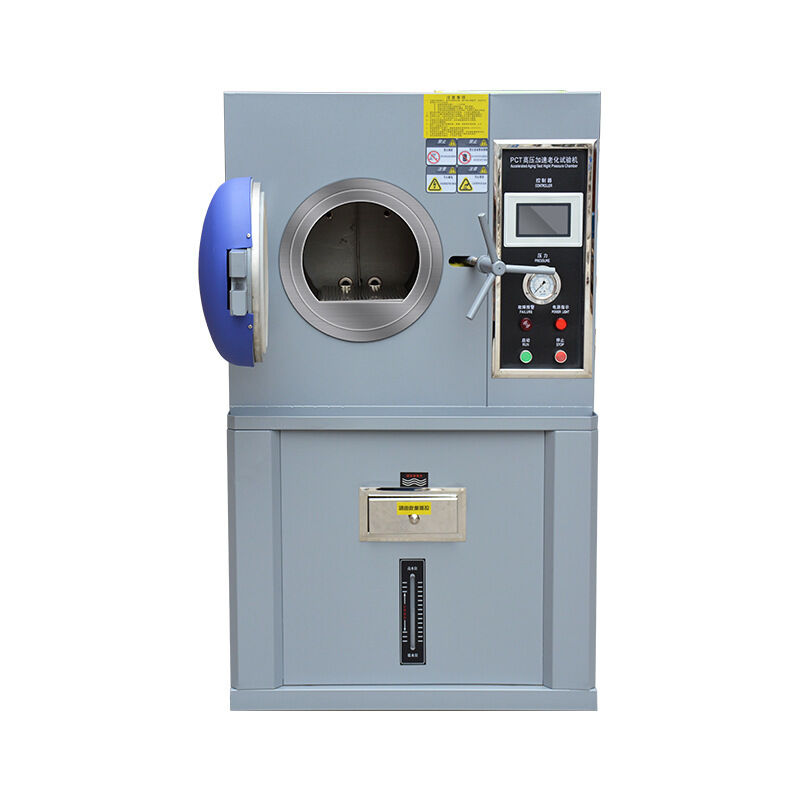

PCT Test Chamber
Description:The PCT Test Chamber is designed for high-temperature, high-humidity, and pressurized testing of electronic components, materials, and magnetic materials. It features a temperature range of +100°C to +135°C, pressure range of 0.50 to 2.00 kg/cm², and saturated steam humidity control. Constructed with an SUS#316 stainless steel inner tank and SUS#304 stainless steel outer housing, it offers reliable durability. Key features include an imported solenoid valve system, independent steam generator to prevent direct impact on test samples, enhanced door locking mechanism, and multi-level safety protections. Equipped with a microcomputer controller and LED display, it is widely used in electronics, component manufacturing, and material testing industries for product design validation, quality assurance, and inspection.
Material:

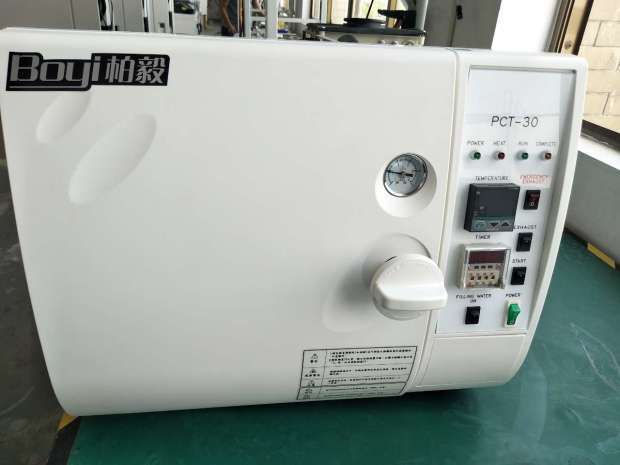

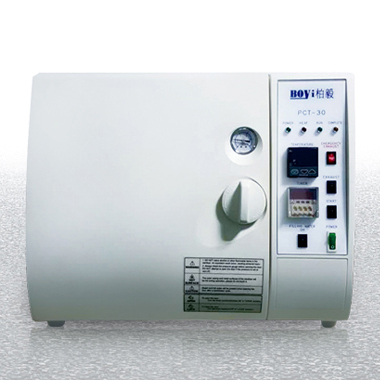

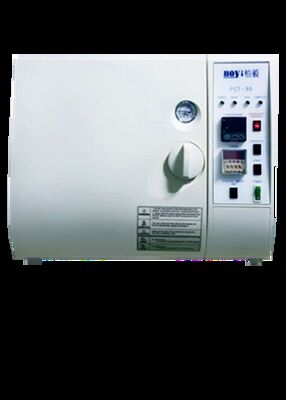

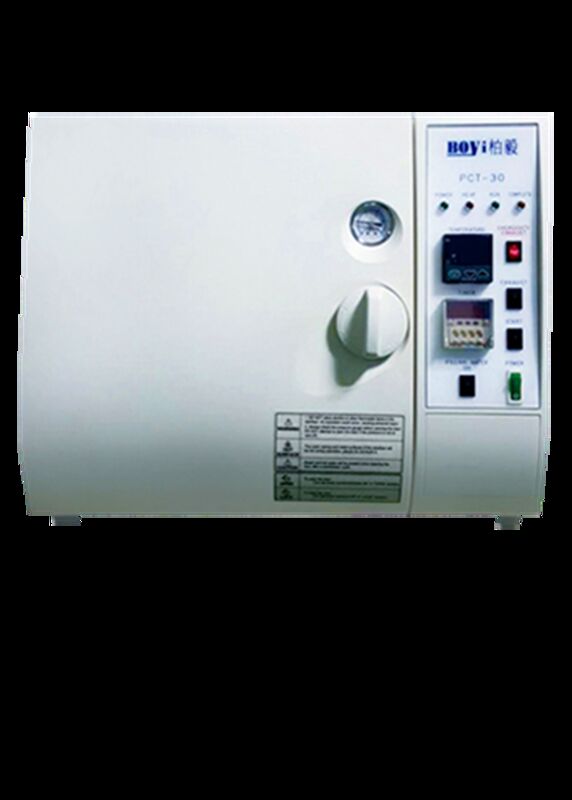

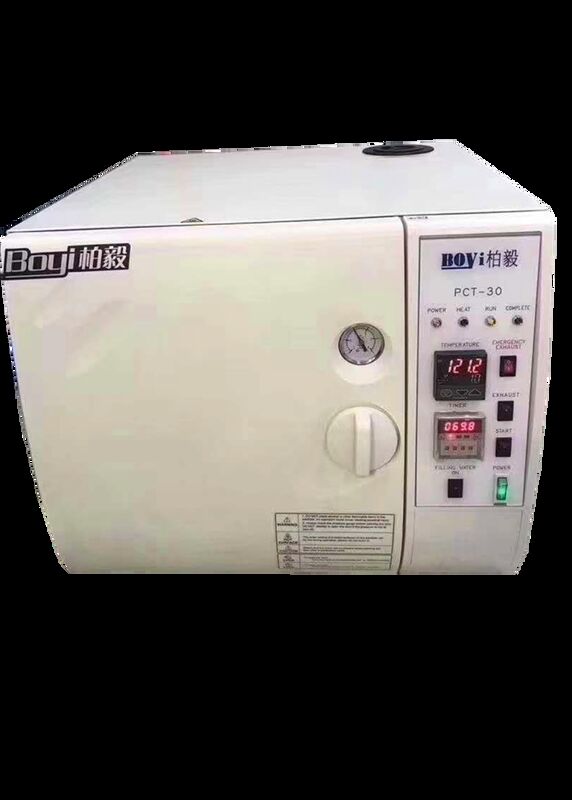

1.1Test box size: PCT-30 (300x L500 mm), round test box
1.2 Overall dimensions: 900x 900 x 1600 mm (W * D * H)
1.3 Inner barrel material: stainless steel plate (SUS # 316 3 mm) or plastic spray
1.4 Outer barrel material: stainless steel plate material
1.5 Insulation material: rock wool and rigid polyurethane foam insulation
1.6 Steam heating chamber heating tube: titanium tube heating, never rust.
Product detail:
| Model |
| Studio size |
PCT40: 400mm x L500 mm round test chamber |
|
| Performance |
Temperature and humidity range |
+100 °C ~ +135 °C (saturated vapor temperature), 100 vapor humidity |
| Temperature fluctuation |
±0.5°C |
| Humidity distribution mean |
3% |
| Pressurization time |
0.00 Kg ~ 1.04 Kg / cm2 Approximately 45 points |
| Temperature display accuracy |
0.1 ° C |
| Pressure fluctuation |
±0.02Kg |
| Temperature and humidity operation control system |
Controller |
Imported LCD digital display P, I, D + S, S, R. Micro PLC + color touch screen |
| Range of accuracy |
Setting accuracy: temperature ±0.1 °C, indicating accuracy: temperature ± 0.1 ° C, resolution: ± 0.1 ° C |
| Temperature Sensor |
Platinum resistance PT100Ω |
| Heating system |
Fully independent system, nickel-chromium alloy electric heating heater |
| Circulatory system |
Steam convection hot row |
| Material used |
Outer box material |
High quality carbon steel plate. Phosphating electrostatic spray treatment / SUS304 stainless steel matte line hairline treatment |
| Inner box material |
SUS304 stainless steel high quality mirror light panel |
| Insulation material |
Polyurethane rigid foam, ultra-fine glass fiber cotton |
| Standard configuration |
1 sample rack, 3 layers of partition |
| safety protection |
Overvoltage, short circuit, over temperature, over current protection |
| voltage |
AC220V/ 50±0.5Hz single phase |
Note:
1. The above data are all at ambient temperature (QT) 25 ° C. Under no load conditions in the studio
2. Can be customized according to the specific requirements of users, non-standard high and low temperature, low temperature laboratory |
Feature:
Main accessories table:
Thermostat: Touch controller
Test temperature record U disk export (standard configuration)
Computer online control (optional)
High temperature and high pressure water level device: Taiwan Hongyu
High temperature solenoid valve: German herion
Relay: Japan Omron
Pressure Gauge: China Red Flag
Over temperature protector: Korea AGO
S. S. R: Taiwan is famous
Temperature and humidity sensor: VAISALA, Netherlands
Heater: self-produced (all titanium tube)
Pressure safety device: self-produced (copper spring type)
High pressure clean water pump: (Germany) PUM
Hose: Nissan Aseptic
Cabinet material (inner barrel): SUS316
Outer box material: SUS304
Sealing ring: Silicone V-shaped mold
